Parker - JE

JE (Jackes-Evans) is a long-established American solenoid valve brand within SKINNER, built around refrigeration solenoid valves: on/off control of liquid lines, suction lines and hot-gas defrost circuits, and just as widely used for switching water, air and other general fluids. Valve bodies are brass or stainless steel, and coils and bodies are replaceable separately, making JE a standard component in commercial refrigeration and washing equipment.

Features

Direct-acting and pilot-operated designs: direct-acting for low-flow circuits, pilot-operated for larger liquid and suction lines
Brass or stainless steel bodies with ODF solder or threaded connections, following refrigeration piping practice
Coils supplied separately from bodies: R-23 and other coils can be replaced in the field, AC or DC voltages available
UL and CSA listed, with the MOPD (maximum opening pressure differential) stated on the nameplate for straightforward selection
Metal-housing or encapsulated coils for oily, damp or lead-wire-wired machine installations

Applications

Car wash machines: switching high-pressure water, detergent and wax lines under continuous cycling and outdoor humidity
Commercial washing machines and dryers: automatic control of water, hot water and steam circuits
Refrigeration and cold storage: liquid-line and suction-line solenoid valves and hot-gas defrost valves
Ice makers, water dispensers and beverage machines: low-flow water and refrigerant circuits
Dishwashers and food machinery: water and steam on/off control

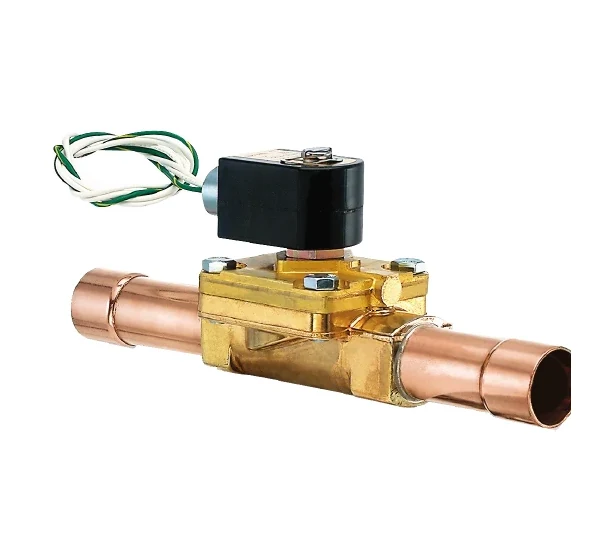

Parker JE brass-body refrigeration solenoid valve with ODF solder connections

Brass-body refrigeration solenoid valve, ODF solder connections, lead-wire coil

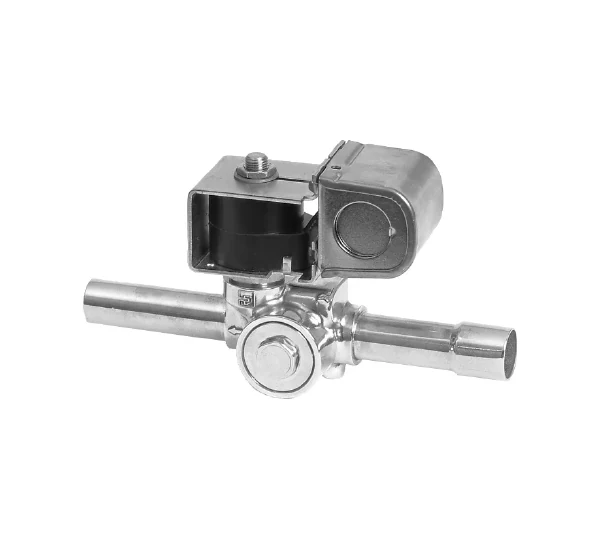

Parker JE refrigeration solenoid valve with metal coil housing

Metal-housing coil version for oily or damp machine environments

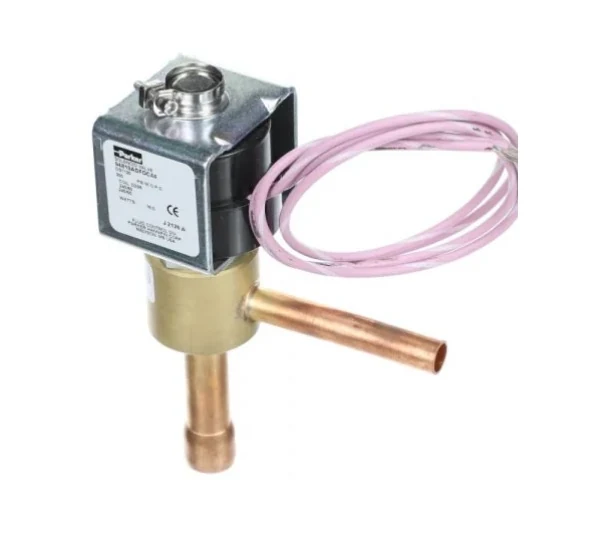

Parker JE small-port direct-acting solenoid valve

Small-port direct-acting type for water dispensers, ice makers and other low-flow circuits

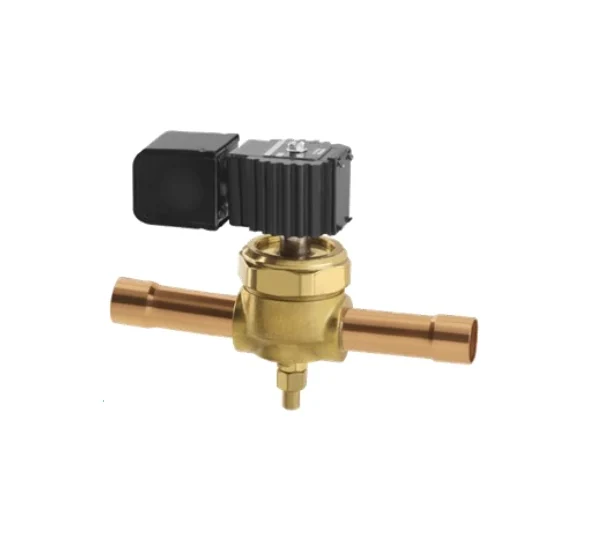

Parker JE brass direct-acting solenoid valve with DIN connector coil

Brass direct-acting valve with DIN connector coil for quick wiring

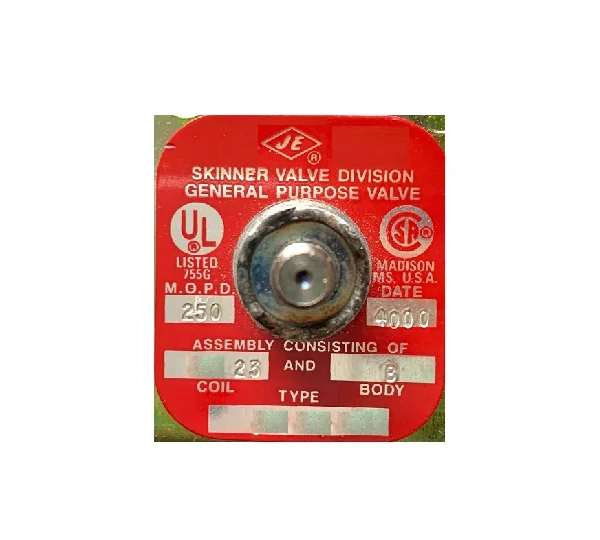

Parker JE solenoid valve nameplate with UL and CSA listings, MOPD 250 psi

UL/CSA-listed nameplate showing MOPD and the coil/body assembly

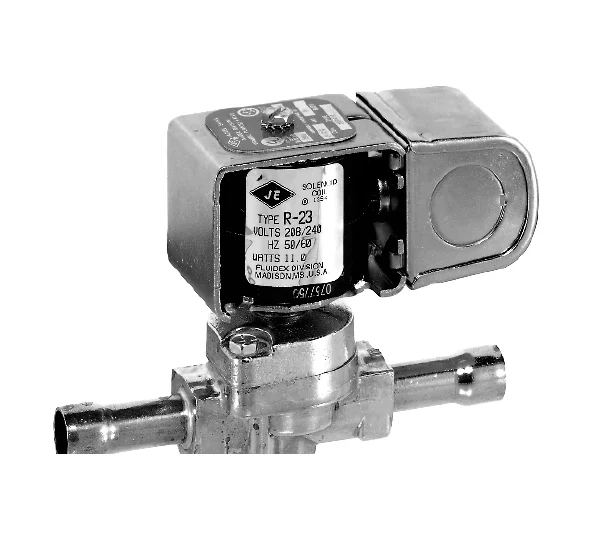

Parker JE RB6E4 refrigeration solenoid valve with R-23 coil

RB6E4 refrigeration solenoid valve fitted with an R-23 coil

For selection, please tell us the fluid, port size, working pressure differential (MOPD) and coil voltage, and we will match the current JE model or an equivalent. Contact us for details.
